    The LSQ3 power source

    Entry-level solution with Direct Control Technology (DCT)

  • Stromquelle LSQ3

    The LSQ3 power source

    Entry-level solution with Direct Control Technology (DCT)

LSQ3 power source:

With an output of 340 A

The LSQ3 offers enough power reserves for special weld tasks like chassis and exhaust parts and other thin sheet metal applications.

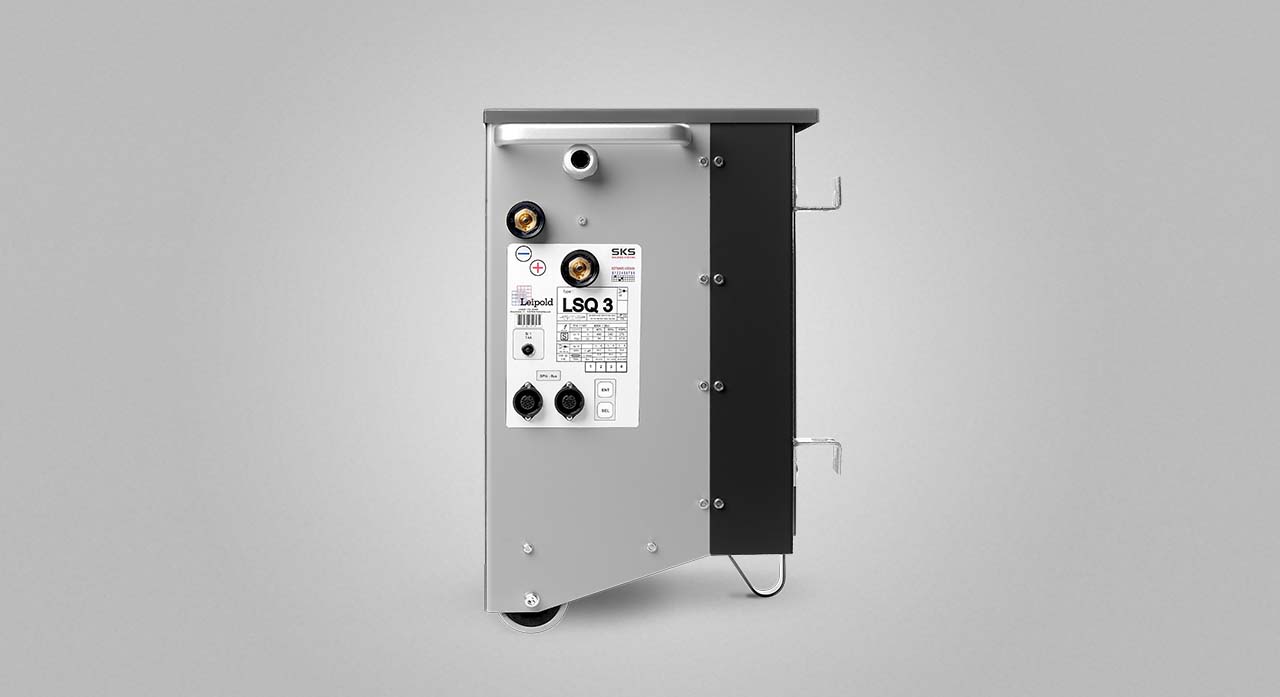

Picture gallery: LSQ3

  • Benefits - LSQ3

    Benefits - LSQ3

    • Up to ten times the control speed of traditional inverter technologies – resulting in an excellent control performance and thus shorter intervention times.
    • Generally enhanced welding characteristics. Software replaces hardware: Less components increase the system reliability – also in continuous operation.
    • Future-proof: New functions are included via software upgrades in an effortless and cost-effective way.
    • External fans without filters: No accumulation of dirt inside the power source.
    • Low weight, small footprint: The power source can be installed at any height using the wall brackets.

    LSQ3 Features

    Certifications

    CE UL CSA CCC (400 A)

    Switchable Supply Voltage

    Yes No

    Processes

    GMAW/MIG I-pulse U-pulse KF-pulse microMIG

    microMIG-cc TIG-DC TIG-pulse Dual wire

    Characteristics

    Direct Control Technology Expand functions Filterless cooling

    Certifications

    CE

    UL

    CSA

    CCC (400 A)

    Switchable Supply Voltage

    Yes

    No

    Processes

    GMAW/MIG

    I-pulse

    U-pulse

    KF-pulse

    microMIG

    microMIG-cc

    TIG-DC

    TIG-pulse

    Dual wire

    Characteristics

    Direct Control Technology

    Expand functions

    Filterless cooling

    Performance Characteristics:

    340 A / 60% ED 40 °C
    270 A / 100% ED 40 °C

    Supply Voltage:

    3 x 400 V / 50 Hz – also available with 480 V (US version)

    Weight:

    37.00 kg

    Dimensions (l / w / h):

    450 / 330 / 540
