  • Q84s weld process controller for the simultaneous control of up to four welding machines

    Q84s with touch screen:

    With the compact Q84s up to four weld machines can be controlled centrally

  • Q84s weld process controller for the simultaneous control of up to four welding machines

    Q84s with touch screen:

    With the compact Q84s up to four weld machines can be controlled centrally

Q84s weld process controller:

With the compact controller Q84s up to four weld machines can be controlled centrally

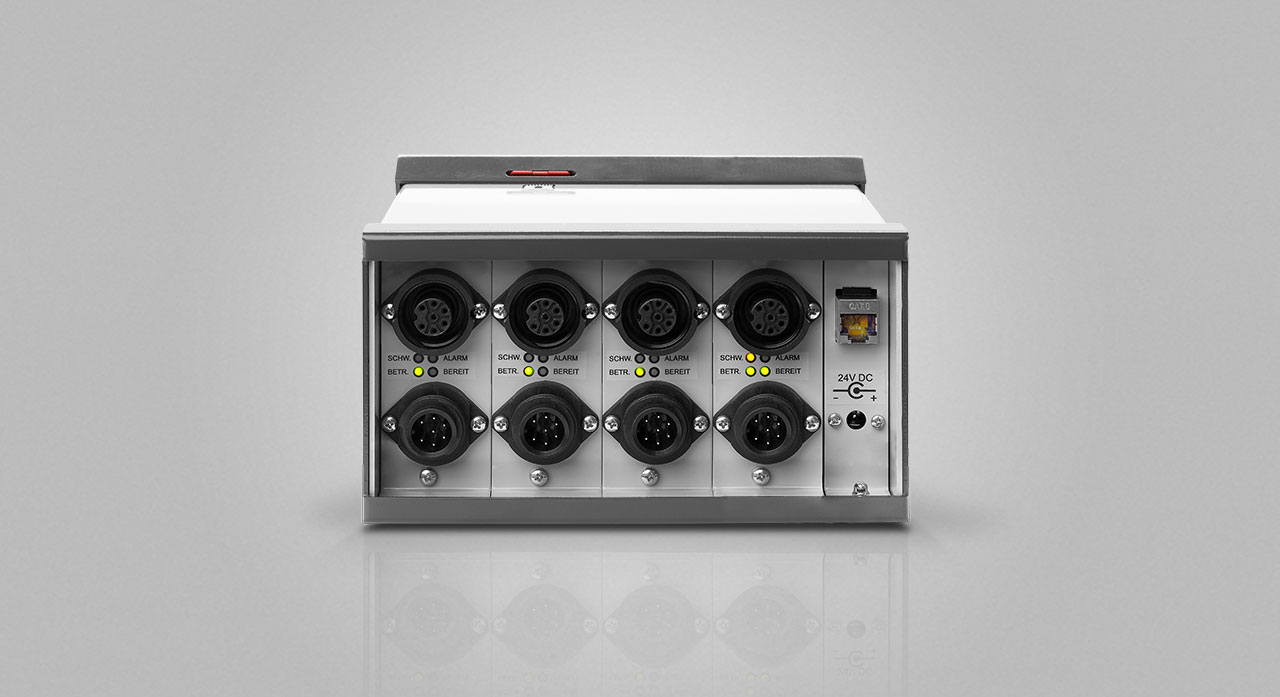

The Q84s is equipped with a touch screen, an innovative usability concept and an advanced visualization technology for much easier operating. The user interface has the look and feel of the Q8Tool software. Individual weld process controllers are in card slots in the Q84s. This new weld process controller concept can host up to four weld process controller cards. Each card independently controls a weld machine.

Weld process controller Q84s

The universal weld process controller Q84s calculates the optimal parameters for each welding process. Only basic data such as material, wire type, wire feed speed and type of gas must be entered. The space-saving Q84s is equipped with a 7" touch screen. For wall mounting the display of the Q84s can be rotated by an angle of 180°.

Our weld process controllers support the MQTT and OPC UA protocols – Industry 4.0 ready

Picture gallery: Q84s

  • Benefits - Q84s

    Benefits - Q84s

    • Processes/technologies: MIG/MAG, I-Pulse, U-Pulse, KF-Pulse, Synchroweld, RWDE, NWDE, microMIG, PlasmaTIG, Dual Wire
    • Modular design with up to four controllers
    • Programs: 992
    • General functions: Indication/storage of measured values and alarm messages
    • Monitoring functions: Welding current, auto compensation, arc and ignition characteristics, motor current, gas and cooling water
    • Convenient front end with graphical touch-panel display
    • User-friendly operation equivalent to the Q8Tool4 software
    • Remote control via VNC
    • Connections: RJ45 Ethernet, SPW bus

    Q84s Features

    Functions

    Synchroweld NWDE (Traceability Function) RWDE MQTT / OPC UA

    Processes

    GMAW/MIG I-pulse U-pulse KF-pulse microMIG

    microMIG-cc TIG-DC TIG-pulse Dual wire

    Control Panel

    Touch Panel Keys / LCD

    Interfaces

    Ethernet SPW-Bus RS232 USB

    Remote Maintenance

    Q8Tool VNC-Client

    Industry 4.0 ready

    Synchroweld

    NWDE (Traceability Function)

    RWDE

    Processes

    GMAW/MIG

    I-pulse

    U-pulse

    KF-pulse

    microMIG

    microMIG-cc

    TIG-DC

    TIG-pulse

    Dual wire

    Control Panel

    Touch Panel

    Keys / LCD

    Interfaces

    Ethernet

    SPW-Bus

    RS232

    USB

    Remote Maintenance

    Q8Tool

    VNC-Client

    Programs:

    Up to four controllers with 992 programs each

    Weight:

    1.62 kg

    Dimensions (l / w / h):

    205 / 195 / 109
