Steel-aluminum joint:
Aluminum
Lap weld |  |
|---|---|
| Welding process: | microMIG-cc |
| Welding speed: | 40 cm/min |
| Heat input per unit length: | 100 J/mm |
| Base material 1: | Al 99,5 1.0 mm |
| Base material 2: | DX51D Z200 1.0 mm |
| Filler material: | AlSi5 (ER4043) 1.2 mm |
| Shielding gas: | 100 % Ar |
Special features – Steel-aluminum joint (lap weld)
- excellent thermal control
- welding on aluminum sheet – brazing on steel sheet
SKS welding application for car bodies: Steel-aluminum joint (lap weld)

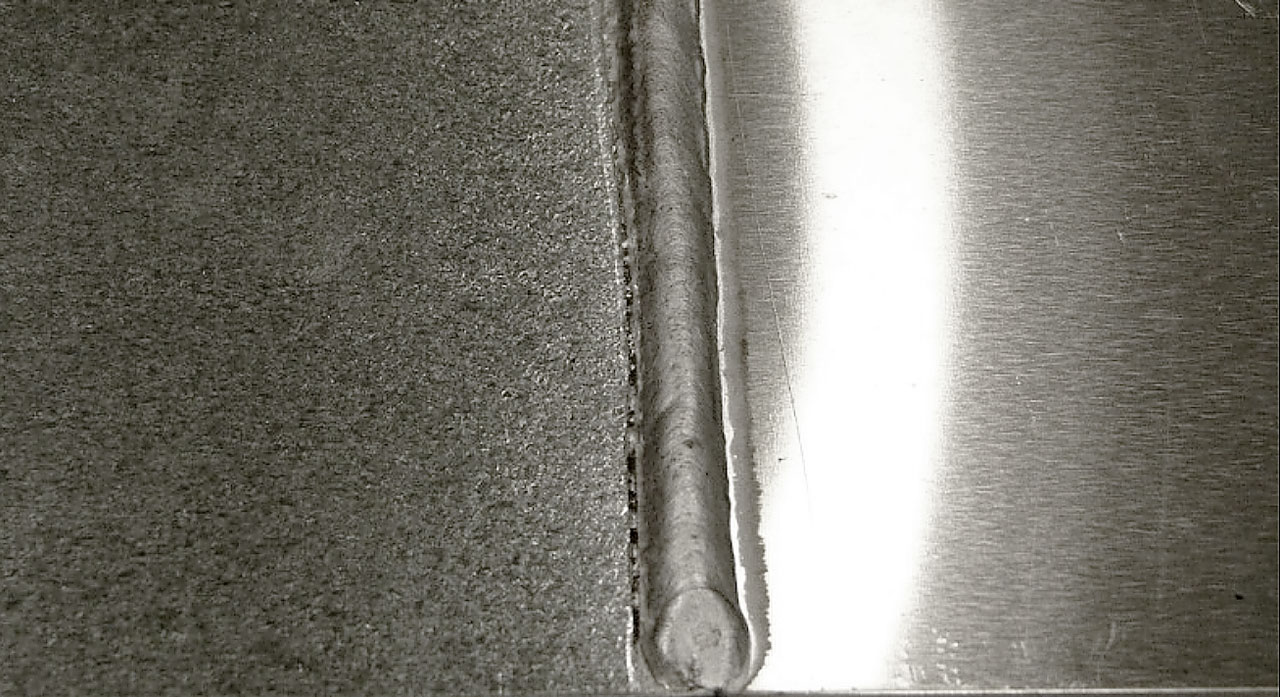

Picture gallery – Steel-aluminum joint (lap weld)
I-weld |  |
|---|---|
| Welding process: | microMIG-cc |
| Welding speed: | 40 cm/min |
| Heat input per unit length: | 98 J/mm |
| Base material 1: | Al Mg3 1.5 mm |
| Base material 2: | DX51D Z200 1.0 mm |
| Filler material: | AlSi5 (ER4043) 1.2 mm |
| Shielding gas: | 100 % Ar |
Special features – Steel-aluminum joint (I-weld)
- excellent thermal control
- welding on aluminum sheet – brazing on steel sheet
Picture gallery – Steel-aluminum joint (I-weld)
