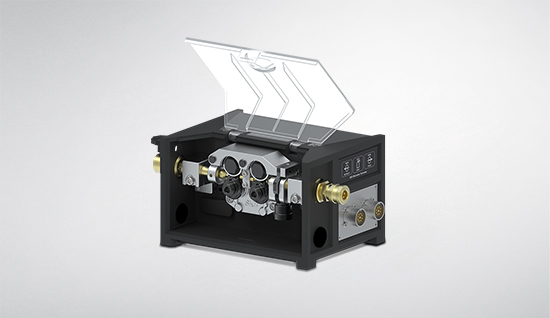

The SKS PF5 wire feeder: Smaller and more lightweight and with enhanced efficiency compared to conventional wire feeders, the PF5 perfectly adapts to the continuous further development of arc-welding robots. Its 70-W precision motor and state-of-the-art gear and control technologies provide for ample power and highest precision. The rugged plastic enclosure is electrically isolated. As a real “lightweight”, the PF5 is particularly suitable for the new robot generations with inner or outer cable dress.
The transfer of power and gas within the PF5 is implemented in a single point over the Power Pin. This makes any additional connections and tubes redundant. The Power Pin ensures the defined transfer of power over the full diameter of the connection. This serves to reduce electric resistance and lowers power consumption.
Another benefit: The Power Feeder PF5 is available in different versions for best possible installation and is also perfectly suitable for dual-wire and other special applications.
The industrial proven SKS Power Feeder PF5 is available with an additional monitoring functionality: an integrated gas flow sensor. The weld process controller displays the gas flow values, and can also be triggered to an alarm, in case of a non-defined gas flow rate.
Yes No
Yes No Optional integrated
Yes No
Yes
No
Yes
No
Optional integrated
Yes
No
0.1 – 25 m/min
Weight:3.80 kg
Dimensions (l / w / h):220 / 170 / 136
Drive Rolls (U-groove and V-groove):0.8 – 1.6 mm
Different versions available for best possible installation
